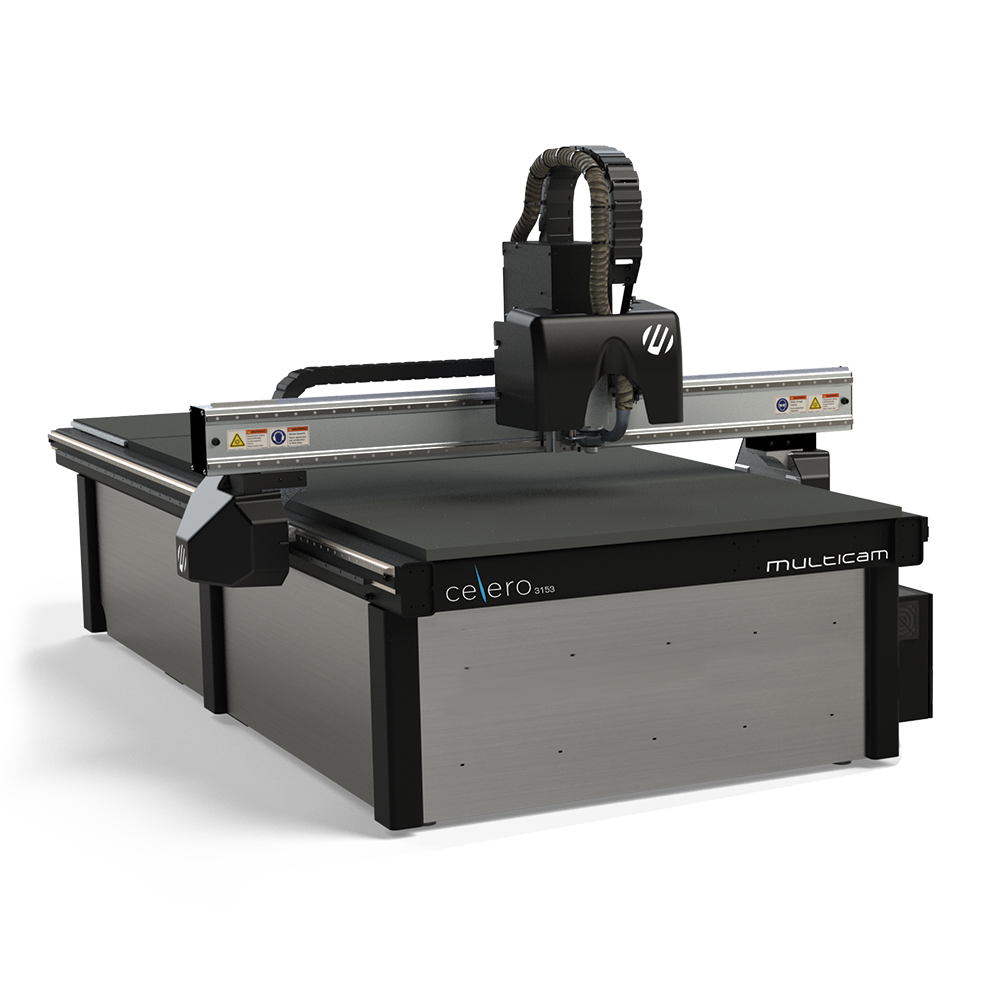

STEEL CONSTRUCTED TABLE
The Celero 3 Series Cutter is built with a durable, all-steel tube frame which significantly reduces vibration and gives the operator tight control for precise cutting and routing.
HIGH RPM’S FOR INCREASED CAPABILITIES
Equipped with a high-frequency spindle, the Celero 3 Series is designed to produce an accurate and smooth motion when cutting either thin or dense substrates. Along with a robust Servo Drive Motor system, the Celero offers maximum flexibility for multiple cutting applications as it comes standard with a routing spindle, universal knife, and oscillating knife.
DIGITAL REGISTRATION SYSTEM
The MultiVision system provides end-users additional flexibility as the camera system is able to visually recognize media registration marks and automatically compensate for skew and/or image drift. This system is also equipped with edge detection which aids in getting the most out of the material to be cut.
COMPUTER WORKSTATION
Our Coreo software has been converted to operate on our robust Touchscreen interface. Celero’s Touchscreen is a powerful tool with an operating system that creates an enhanced operator experience.
PRECISION
The Celero 3 Series features a 3 HP/24,000 RPM spindle which allows for a wide range of routing application. Whether your needs are to route acrylic, dibond, or many other dense substrates, you can do so at a repeatability of .001”.
OPTIONS
- Passive Roll to Basket System
- Second Vacuum Pump
- Bar Code Scanner
- Cana-Vac Dust Collection System
- EngView Packaging Software
- EnRoute Routing Software
- Driven Rotary Tool for Textiles
- Knife Tool Options
MATERIAL CUT
- Cardboard
- Fabric
- Foamcore
- Corrugated Plastic
- Acrylic
- Wood
- Leather
- Styrene
- Falcon Board
- Sintra
- PVC
- Vinyl
- Dibond
SPECIFICATIONS
- Z-Axis clearance: 2”
- Z-Axis Travel: 6.5″
- Cut speed: 4,000 IPM
- Rapid traverse: 5,656 IPM
- Repeatability: +/- 0.001”
- Drive System (X,Y): Helical
- Drive System (Z): Ball Screw
- Work Surface: 1.25″ Phenolic
- (Specifications subject to change without notice)
APPLICATIONS
- Point of Purchase Display
- Sign Making
- Packaging
- Textiles
- Aluminum Cutting
- Digital Print
- Vinyl Banners
- Vehicle Wraps
- Acrylic Display
- Leather Goods
- 3-Dimensional Signs
